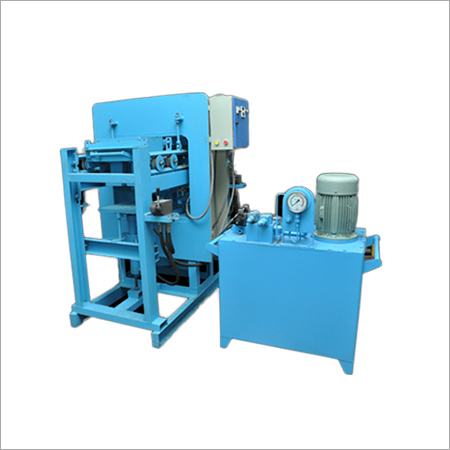

Interlocking Paver Block Machine

Interlocking Paver Block Machine
Interlocking Paver Block Machine
Product Code : APPB-201
Brand Name : A PATEL
Product Description

Our core business lies in meeting customer's expectations and for this we are engaged in providing the outstanding quality Interlocking Paver Block Machine. It is manufactured under the observation of our experienced team using pristine quality materials in accordance with industry norms. This is designed for making the interlocking paving blocks in a very large quantity at a minimum time period. Further, this Interlocking Paver Block Machine is available with us in a variety of specifications at affordable prices.

Features:

  • Optimum functionality
  • Strong construction
  • Smooth operation

Technical Specification :

Features Machine Specification
Maximum High Pressure 40 Tonnage
Total Power Required 5 HP ( Three Phase)
Oil Tank Capacity 60 Liters
Manufacturing Capacity Paver Blocks 25 To 80 MM Thickness
Mosaic and Chequered Tiles up to 375 × 375 MM
Production Paver Blocks 1800 To 2000 NOS / 8 Hours.
Fly Ash Bricks 2000 To 2200 NOS / 8 Hours

Model No. : APPB-206

Interloking Paver Block Machine (2 KVT)

Features Machine Specification
Maximum High Pressure Tonege 70 Tonnage
Total Power Required 5 HP (Three Phase)
Oil Tank Capacity 200 Ltr. (Hydraulic oil 68 Number)
Manufacturing Capacity Paver block up to 40 MM To 100 MM Thickness.
Production Capacity Paver Block 3000 To 3500 Nos. / 8 Hours.
Fly Ash Bricks 3000 To 3500 Nos. / 8 Hours.
Facility
  • Two KVT Mould Fitted one side and Two KVT Mould opposite side in trolley.
  • Trolley System-Mould Mover operates through trolley.
  • Oil Cooling system facilitat to cool down oil even press in workin.
  • Auto Stop control panel.
  • Safe working condition with electrical and mechanical interlock system
  • The pressing operation in timer controlled with single switch operation for both pressing and return strokes ensuring uniform pressure on all sides of paver blocks and bricks.

General Technical Information :

  • Wiper on cylinder top.
  • At a time 4 worker can work.
  • For removing of ring, Facility Of Hydraulic Stand is available.
  • It can also manufacture CHEQUERED TILES, ELEVATION WALL TILES.
  • .
  • Paver made will have Shining smooth finish.
  • Pavers mfgd. from our PAVER MACHINE are fitted in PETROL (FUEL) PUMP, RAILWAY PLATEFORM AIRPORT, SWIMMING POOL, GARDEN RESORT, GENERAL PUBLIC PARKING PLACE,INDUSTRIAL PARKING PLACE RAILWAY CROSSING AND CONTAINER YARD.
  • PAVER MACHINE FACILITATE Mfg. OF paver pc. in two colours : bottom in grey cement material and top pc.( thickness 10 mm ) as Required/ selected by customer. this help cost efficiency of paver.
