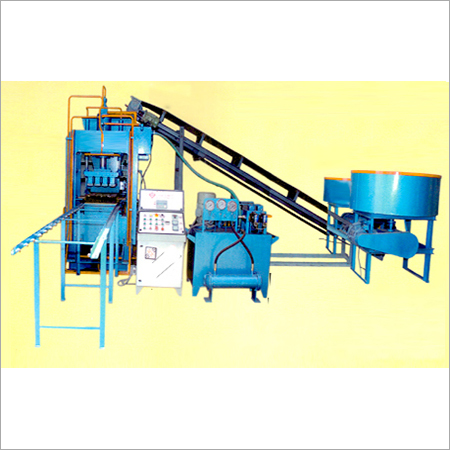

Fully Automatic Fly Ash Bricks Machine

Fully Automatic Fly Ash Bricks Machine
Fully Automatic Fly Ash Bricks Machine
Product Code : APBM 101 & APBM 102
Brand Name : A PATEL
Product Description

Model No. : APBM-101

Fully Automatic Fly Ash Bricks Machine

APBM-101 Fully Automatic Fly Ash Bricks Machine (8 KVT Size : 230 x 110 x 75 mm)

Technical Specification :

Features Machine Specification
Maximum High Pressure 100 to 120 Tonnage With Vibrator
Total Power Required 28 HP (three phase)
(Press machine 10 HP + Pan Maxier 15 HP + Conveyor Belt 2 HP, Vibrator – 1 HP)
Oil Tank Capacity 400 Ltr. (Hydraulic Oil 68 Number)
Facility Single Feader Facility For Production of Fly Ash Bricks
Material Mixing and Feeding Pan Mixer with Conveyor Belt
Production Capacity Bricks size 230 × 110 × 75 MM. 11000 To 12000 / 8 Hours
Bricks size 190 × 90 × 90 MM. 14000 To 15000 / 8 Hours
Bricks size 250 × 120 × 75 MM. 8000 To 9000 / 8 Hours.
Plastic (Wooden) Pallet Size 23″ × 23″ Inches, Thickness 18 MM
Accessories with plant Press Machine – Power Pack – PLC Panel Board – Two Roller Pan Mixer – Conveyor Belt – Two Trolley – Brick Conveying Reil – Tool Box.
Raw Material Fly Ash, Lime Sludge, Gypsym, Aggregate Powder, Cement Etc.
Labours 8 unskilled – 1 skilled
Note Also produce Interlocking Paver Blocks Plain Grey



Model No. : APBM-102

Fully Automatic Fly Ash Bricks Machine

APBM-102 Fully Automatic Fly Ash Bricks Machine (6 KVT. Size : 230 x 110 x 75 mm)

Technical Specification :

Features Machine Specification
Maximum High Pressure Tonage 80 to 100 Tonnage With Vibrator
Total Power Required 20.5 Hp (Three Phase)
(Press machine 10 HP + Pan Maxier 7.5 HP + Conveyor Belt 2 HP + Vibrator 1 HP)
Oil Tank Capacity 400 Ltr. (Hydraulic Oil 68 Number)
Facility Single Feader Facility For Production of Fly Ash Bricks
Material Mixing and Feeding Pan Mixer with Conveyor Belt
Production Capacity Bricks size 230 × 110 × 75 MM. 8000 To 9000 / 8 Hours
Bricks size 190 × 90 × 90 MM. 11000 To 12000 / 8 Hours
Bricks size 250 × 120 × 75 MM. 5000 To 6000 / 8 Hours.
Plastic (Wooden) Pallet Size 18″ × 21″ Inches, Thickness 12 MM
Accessories with plant Press Machine – Power Pack – PLC Panel Board – Two Roller Pan Mixer – Conveyor Belt – Two Trolley – Brick Conveying Reil – Tool Box.
Raw Material Fly Ash, Lime Sludge, Gypsym, Aggregate Powder, Cement Etc.
Labours 6 unskilled – 1 skilled
Note Also produce Interlocking Paver Blocks Plain Grey

General Technical Information :

  • Piston is Hard Chrome.
  • Wiper on cylinder top.
  • Super Vibration and pressing Systems for Maximum compaction and strength.
  • Discharge of finished product through conveyor belt for FASTER production.
  • Automatic pressing and demoulding by preset auto timer control.
  • The press is controlled by jeans of PLC.
  • Fly Ash Bricks, made will have shining smooth finish.
  • Safe Working conditions with electrical and mechanical interlock system.
  • Indicative only. production depends upon the labour efficiency and mix quality.
  • Higher Tonnages, Brick size as per customer specifications. standard brick size is 230 X 110 X 75 mm.
  • Specifications are subject to change for improvement. specifications, eights, volume are approximate only.
  • Manufactures may be introduce such alterations as they may deem fit without previous notice. machines can supplied as per customer’s specific requirements. Machine capacity mentioned is only for guidence. it will vary with materials.
